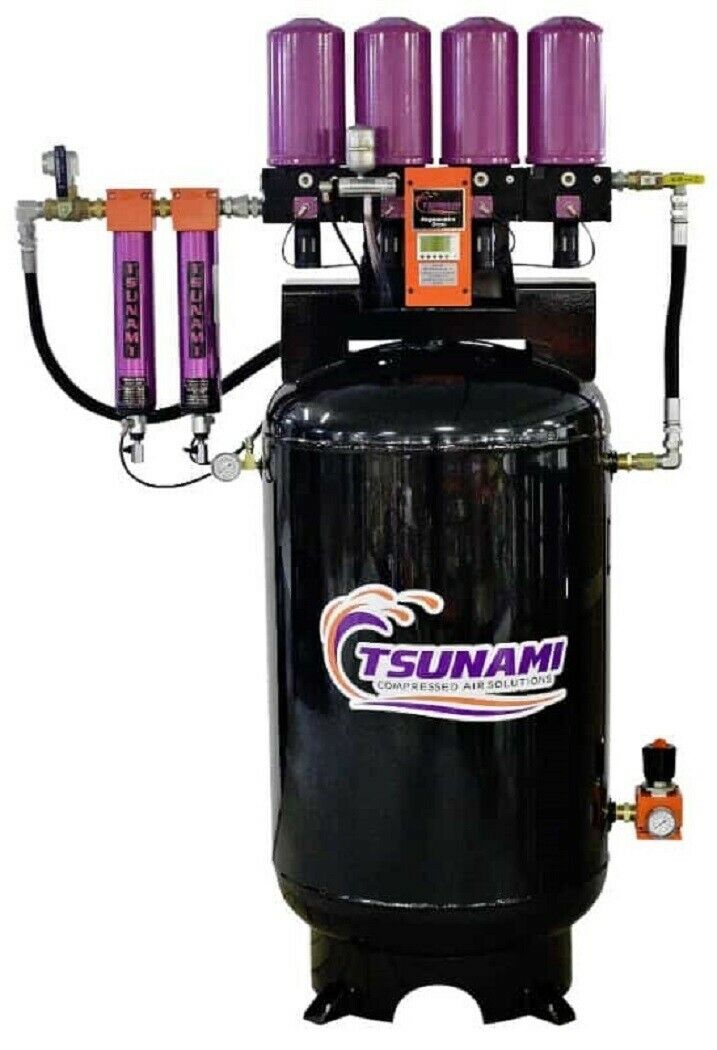

Tsunami 80CFM 80Gallon Ultra Series Regenerative Air Dryer for 20Hp Compressors

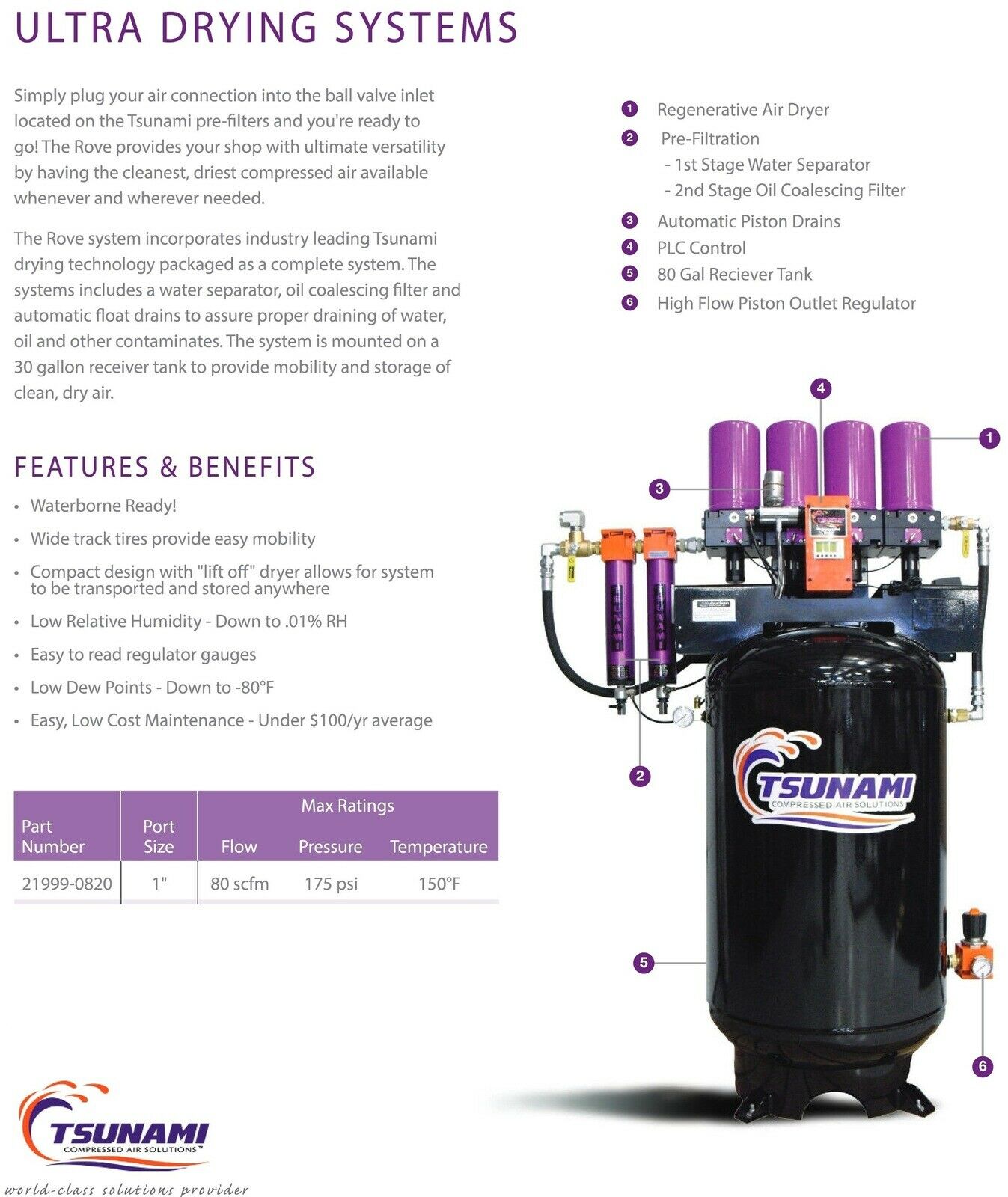

80 CFM 20Hp Tsunami Ultra Drying System:

    Comes fully assembled for easy installation
    The optimal solution for any facility; simply connect shop air into the inlet fitting and out the regulator

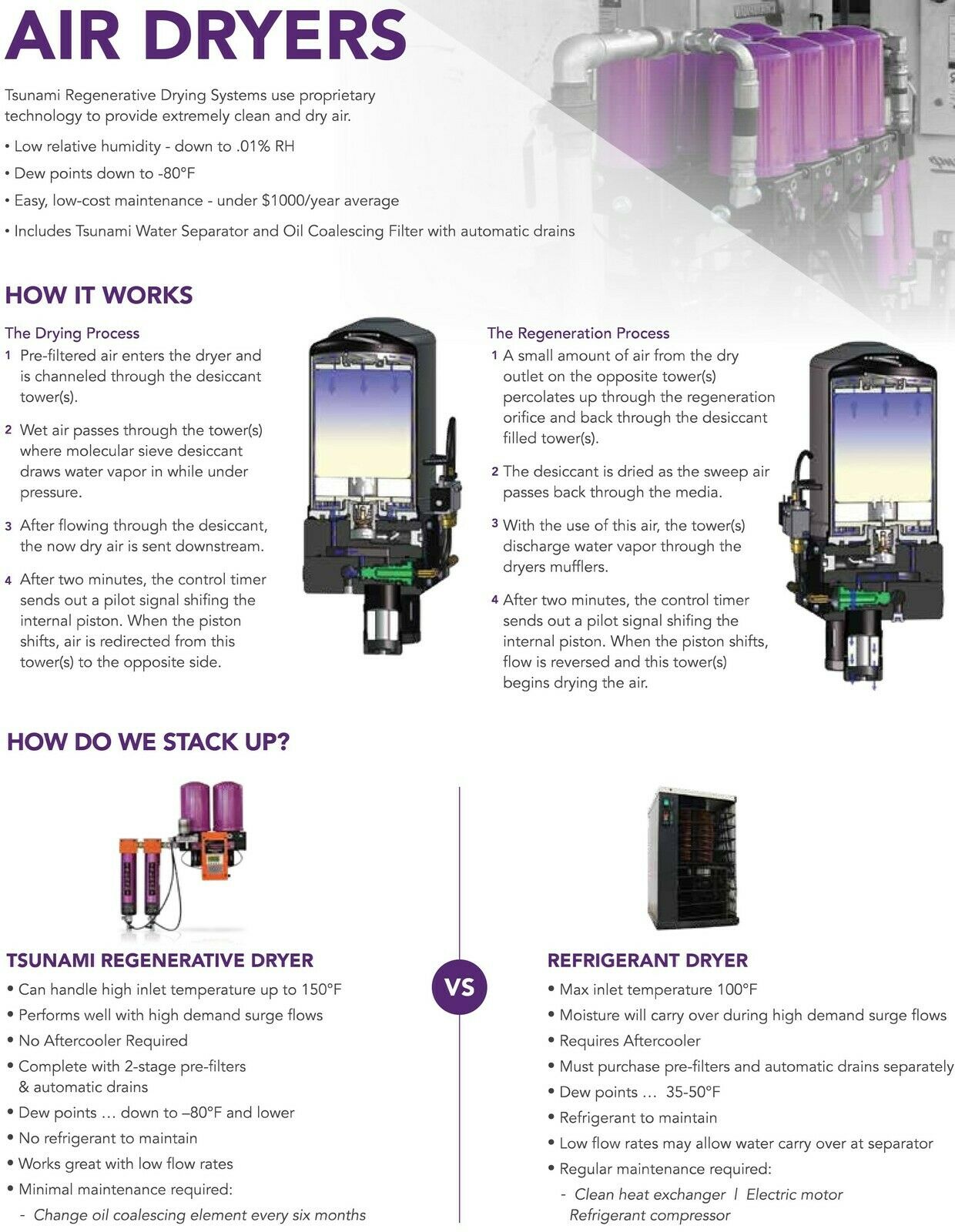

    Regenerative Dryer
    Handles up to 150°F inlet air temperature
    Delivers very dry, clean air down to -80°F dew point
    Pre-filtration to assure removal of water, oil, and particulates before entering the dryer
    Stage 1: Water Separator
    Filters particulate down to 10 microns
    Removes water up to one quarter per minute
    Stage 2: Oil Coalescing Filter
    Non-wicking layer collects & drains oils preventing entrainment
    Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
    Built-In Bypass System
    Allows the dryer to be shutoff for maintenance or service without stopping production
    80-Gallon Tank
    Ready-to-use air w/ regulator and pressure gauge
    Allows compressed air system to increase capacity by storing
    Moisture Minder Pneumatic Drains
    Automatically eliminates water & oil in the filter sumps
    Valve operates without pressure drop in air system
    Programmable Logic Control (PLC)
    Controls the cycling of the dryers for efficient operation
    Great for mobile operations; auto paint, powder coating, etc.

Tank Size: 80 Gallons
Tank Style: Vertical

Filter Combination: Yes
Regulator: Yes
Water Separator: Yes
Oil Coalescing: Yes

Air Dryer CFM: 80CFM
Maximum PSI: 175PSI
Max Inlet Temperature Rating: 150^
Non-Cycling: Yes
Inlet Fittings: 1"
Outlet Fittings: 1"
Aftercooler: No
Pre-Filter: Yes
Post-Filter: No
Alarm Lights: Yes
Auto Drain: Yes
Regenerative: Yes
High Temperature: No

Length: 51"
Width: 28"
Height: 69"
Power Source: Electric
Power Type: 120V Single Phase
Weight: 335 Pounds
Consumer Warranty: 3 Years
Commercial Warranty: 3 Years
